Automatic Tube Mill with High Frequency Welding 80m/min

Name: Automatic Tube Mill with High Frequency Welding 80m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG114
Price: 50,000.00 USD
Availability: InStock

Productdetails:

Plaats van herkomst:	Hebei
Merknaam:	TengTian
Certificering:	CE, ISO9001, BV
Modelnummer:	HG114

Gedetailleerde informatie

Plaats van herkomst:

Hebei

Merknaam:

TengTian

Certificering:

CE, ISO9001, BV

Modelnummer:

HG114

Productnaam:

Automatische buismolen met hoogfrequent lassen 80 m/min

Garantieperiode:

1 jaar

Productieperiode:

4 maanden

Vormmethode:

Roller squeeze

Lasmethode:

Hoge frequentie inductie lassen

Snelheid:

80 m/min

Garantie:

een jaar

Materiaal:

Lage koolstof HRC

Vormtype:

Direct vormen

Werkwinkel:

120 x 10 m, H>7 m (kraan tot grond)

Sleutelwoorden:

Automatische buismolen

Markeren:

High Light

Markeren:

Automatic Tube Mill with high frequency welding

High speed tube mill 80m/min

Automatic Tube Mill with warranty

Handelsinformatie

Min. bestelaantal:

1 set

Prijs:

$100000 to $1 million

Verpakking Details:

Exporteer waterdichte en zeewaardige verpakking.

Levertijd:

120 werkdagen

Betalingscondities:

L/C, T/T

Levering vermogen:

50 sets/jaar

Productbeschrijving

Automatic Tube Mill with High Frequency Welding 80m/min

Product Specifications

Attribute	Value
Product name	Full automatic tube mill
Warranty period	1 year
Production period	4 months
Forming method	Roller Squeeze
Welding method	High frequency induction welding
Speed	80 m/min
Material	Low carbon HRC
Forming type	Direct forming
Work shop	120 x 10 m, H＞7m (crane to ground)

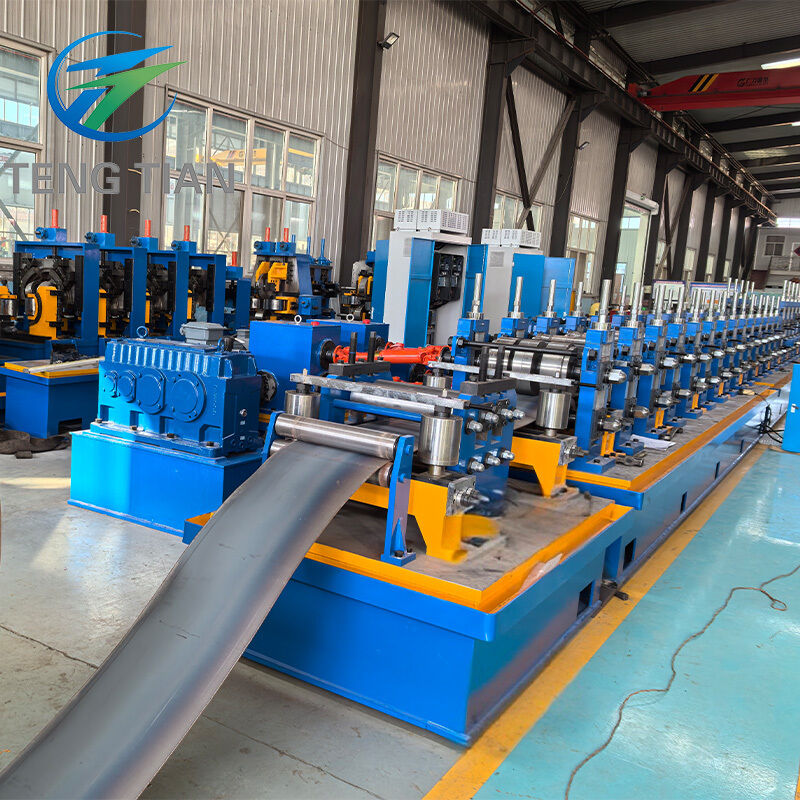

Automatic Tube Mill with High Frequency Welding 80m/min 0

Product Overview

The high frequency straight seam welded pipe production line processes steel belt through a feeding unit, forming it into tube billets via rollers. Using high frequency proximity and skin effects, the strip edges are instantly heated to welding temperature and joined under pressure from squeezing rollers. The welded pipe then undergoes water cooling, sizing, and straightening to meet required specifications.

This production line incorporates innovative designs based on domestic and international equipment, optimized for operational simplicity and maintenance ease. With high machining quality and assembly precision, it produces electric welded steel pipes with exceptional accuracy.

Production Process

Technical Specifications

Model	Side Length Range	Thickness	Production Speed (m/min)	Motor Power (KW)	Mechanical Area (m³)
HG20	6×6 - 16×16 mm	0.3-1 mm	30-120	55	7×50
HG32	9×9 - 25×25 mm	0.3-2.0 mm	30-120	75	7×50
HG50	12×12 - 40×40 mm	0.8-2.5 mm	30-110	110	7×60
HG60	15×15 - 47×47 mm	0.8-3 mm	30-100	132	7×65
HG76	9×9 - 60×60 mm	1-3 mm	30-100	320	8×80
HG89	25×25 - 70×70 mm	1-4 mm	30-80	350	8×80
HG114	35×35 - 89×89 mm	1.5-5.0 mm	30-60	400	10×100
HG165	47×47 - 129×129 mm	3-7 mm	30-50	600	10×110
HG219	89×89 - 172×172 mm	4-8 mm	20-40	800	12×150
HG273	89×89 - 214×214 mm	4-10 mm	15-30	1000	18×160
HG325	129×129 - 255×255 mm	4-12 mm	10-30	1200	18×180
HG426	129×129 - 335×335 mm	4-16 mm	8-25	1400	18×180
HG508	172×172 - 400×400 mm	4-20 mm	8-20	2000	21×180

Recent technology expansion includes:

HG600: Production line for square welded pipes (max side length 600×600mm)
HG765: Production line for round welded pipes (max diameter 765mm)

Quality Assurance & Service Warranty

Pre-sales Service

Equipment photos provided before shipment to verify product authenticity
COVID-19 contingency: Online remote guidance for installation and commissioning when travel restrictions apply
When travel permitted: On-site engineer support for one month (buyer covers travel, accommodation, and salary)

After-sales Service

Under normal operation and proper maintenance, we provide 12 months warranty from equipment arrival date. For quality-related part failures affecting operation, we offer free repairs or replacements.

Factory Overview

Automatic Tube Mill with High Frequency Welding 80m/min 2

Automatic Tube Mill with High Frequency Welding 80m/min 3

Automatic Tube Mill with High Frequency Welding 80m/min 4

Automatic Tube Mill with High Frequency Welding 80m/min 5

Automatic Tube Mill with High Frequency Welding 80m/min 6

Automatic Tube Mill with High Frequency Welding 80m/min 7
