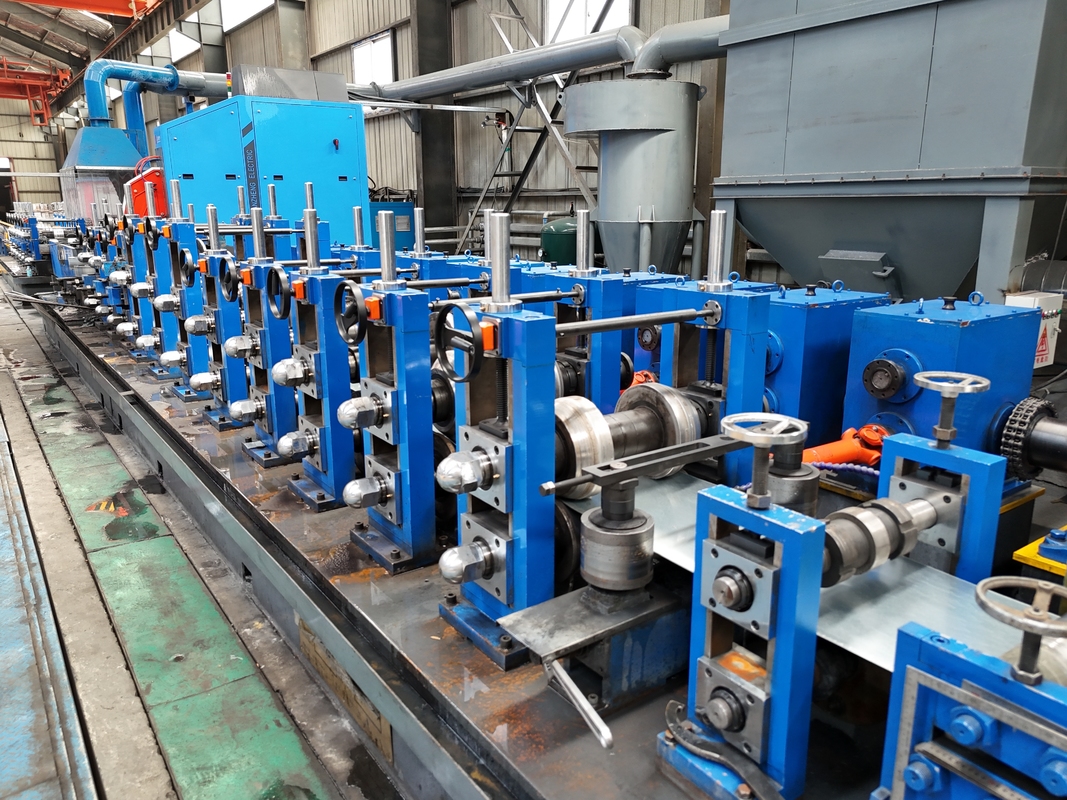

Precision Tube Mill Super High Precision Tube Mill Machine For Steel Pipe Making
Product Specifications
| Attribute |
Value |
| Material |
HRC, CRC, Galvanised Steel |
| Pipe diameter |
25-76mm |
| Welding Type |
High Frequency Welding |
| Pipe shape |
Round, square, rectangular |
| Adjustment type |
By turbine worm |
| Cutting Saw |
Cold Saw & Friction Saw Cutting |
Product Description
Our High Precision Tube Mill is a state-of-the-art steel pipe making machine designed for longevity and superior performance. The system includes:
- Coiler car and decoiler
- Peeler and straightener
- Pinch and leveling machine
- Side guide unit
- End shear and butt-welding machine
- Edge miller
- Plate cleaning unit (optional)
- Main drive system
- Pre-bend unit
- Forming machine
- Internal and external welding units
- Cut off unit
-
High frequency welding technology: Utilizes 10-500KHz high frequency current to create resistance heat for precise metal binding, with or without applied pressure.
Model Specifications
| Model |
Diameter Range |
Pipe Thickness |
Line Speed (m/min) |
| HG20 |
8-25.4MM |
0.3-1.2MM |
120 |
| HG32 |
10-32MM |
1.4-1.5MM |
120 |
| HG50 |
16-76MM |
0.7-2.5MM |
30-120 |
| HG76 |
25-76MM |
1-4MM |
30-100 |
| HG89 |
32-89MM |
1-4.5MM |
30-80 |
| HG114 |
45-114MM |
1.5-5.0MM |
30-60 |
| HG165 |
60-165MM |
3-7MM |
30-50 |
| HG219 |
114-219MM |
4-8MM |
20-40 |
| HG273 |
114-273MM |
4-10MM |
15-30 |
| HG325 |
165-325MM |
4-10MM |
10-30 |
| HG426 |
165-426MM |
4-12.7MM |
8-25 |
| HG508 |
219-508MM |
4-16MM |
8-20 |
ERW Pipe Mill Overview
Our KJ Series Straight Seam High Frequency Steel ERW pipe mill lines manufacture welded steel pipes with:
- Diameter range: Φ7mm-Φ219mm
- Wall thickness range: 0.2mm-8.0mm
- Capability to produce profiled pipes (square, rectangular, oval)
Combining advanced domestic and international pipe making technology, our innovative production line offers both economic and practical solutions.
Compatible Materials
Low carbon steel, low alloy steel, galvanized steel, stainless steel, and other compatible materials.
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
