Customizable ERW Carbon Steel Pipe Machine 219mm Diameter

Name: Customizable ERW Carbon Steel Pipe Machine 219mm Diameter
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG219
Price: 50,000.00 USD
Availability: InStock

Productdetails:

Place of Origin:	China
Merknaam:	TengTian
Certificering:	BV,CE,ISO
Model Number:	HG219

Gedetailleerde informatie

Place of Origin:

China

Merknaam:

TengTian

Certificering:

BV,CE,ISO

Model Number:

HG219

Product Name:

Customizable ERW Carbon Steel Pipe Making Machine

Coild:

Q235

material:

Carbon steel

Diameter:

219mm(max.)

Thickness:

6mm

Length:

6-9M

Weight:

8 Tons

cutter:

hot saw

Runout Table:

18M

Key Word:

Carbon Steel Pipe Making Machine

Markeren:

High Light

Markeren:

ERW carbon steel pipe machine

customizable steel pipe machine

219mm diameter pipe machine

Handelsinformatie

Minimum Order Quantity:

1 set

Prijs:

$100000 to $1 million

Packaging Details:

plastic film winding, wooded case for electric components

Delivery Time:

150 days

Payment Terms:

L/C,T/T

Supply Ability:

21 sets per year

Productbeschrijving

Customizable ERW Carbon Steel Pipe Making Machine

Product Specifications

Attribute	Value
Product Name	High Efficiency Customizable Steel Pipe Making Machine
Coil	Q235
Diameter	219mm (max.)
Thickness	6mm
Length	6-9M
Weight	8 Tons
Cutter	Hot saw
Runout Table	18M

Product Description

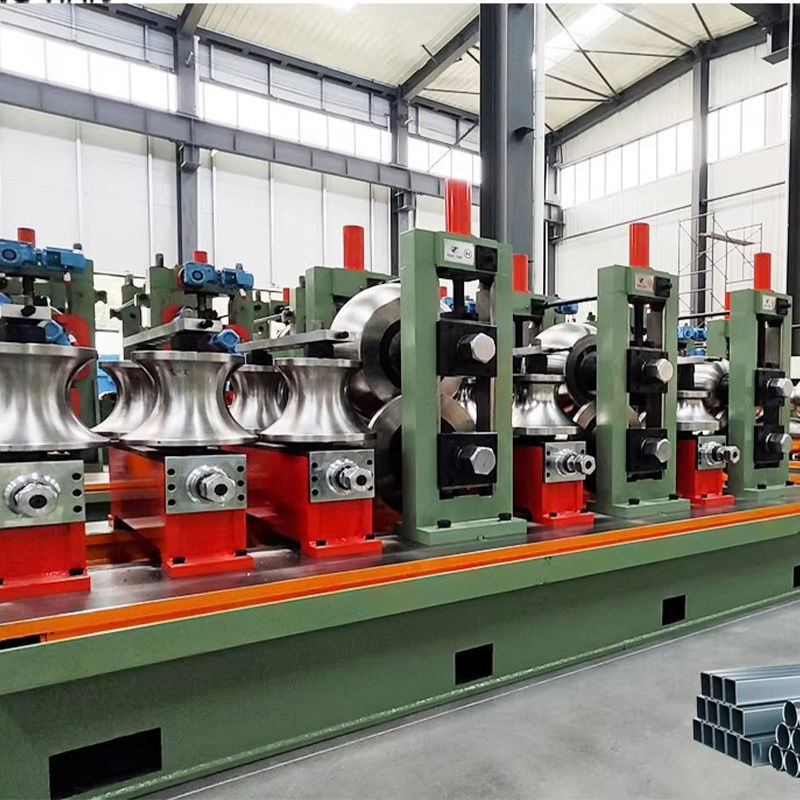

This high-efficiency customizable steel pipe making machine is designed to produce welded steel pipes, including round, square, and rectangular pipes. Featuring roll pass design, the production line manufactures welded steel pipes with excellent quality machining and high-precision assembly.

Material Specifications

Standard: Conforming to YB189-64 standard
Material: Low carbon steel and low alloy steel, Q235
Strip Width: 320-700mm
Strip Thickness: 1.5-6.0mm
Inner Diameter of Coils: φ470～φ510mm
Outer Diameter of Coils: Φ1000～φ1800mm
Coil Weight: ≤8T

Pipe Specifications

Pipe Size: Round Pipe: ø89-219mm | Square Pipe: 80x80 - 175x175mm | Thickness: 1.5-6.0mm
Length: 6m
Forming Speed: 20-50 m/min

Buyer-Supplied Requirements

Total Capacity: Around 850 kW
Circulation Cooling Water (whole system): Flow: 20T/h～30 T/h | Pool Volume: 30m³
Compressed Air (whole system): Flow: 5m³/min | Pressure: 5-7kg/㎡
Cable: All cable outside of machine to be purchased after machine is fixed in location

Installation & Support

We typically send 2-3 engineers to perform installation and commissioning of the entire line. The buyer is responsible for:

Round-trip tickets for engineers
Food, accommodation, and local transportation
Technical service fee of $150 per day per engineer

Packaging & Shipping

Certifications

Service & Support

On-site engineer support for installation and operator training
One year quality guarantee with lifetime repair support
Free repair parts during warranty period (excluding human error)
Pre-sale services including workshop and production output design
After-sale services including installation, training, and technical support
Option for extended engineer support (several months to 1 year)
Complete project design services for stainless steel/carbon steel pipe making
Responsibility for loading and shipping

Frequently Asked Questions

Q: Are you manufacturer or trading company?

A: We are manufacturer with more than 20 years experience.

Q: What is the max size of pipe you have ever produced?

A: Maximum φ630mm.

Q: Can I visit your customer machine line?

A: Yes, but we need to get agreement from our customer first.

Q: What are your machine advantages?

A: Full automation, direct square forming, shared rollers, and fast change system.

Q: How can I get the quotation?

A: Please send your pipe size and thickness requirements to us.
